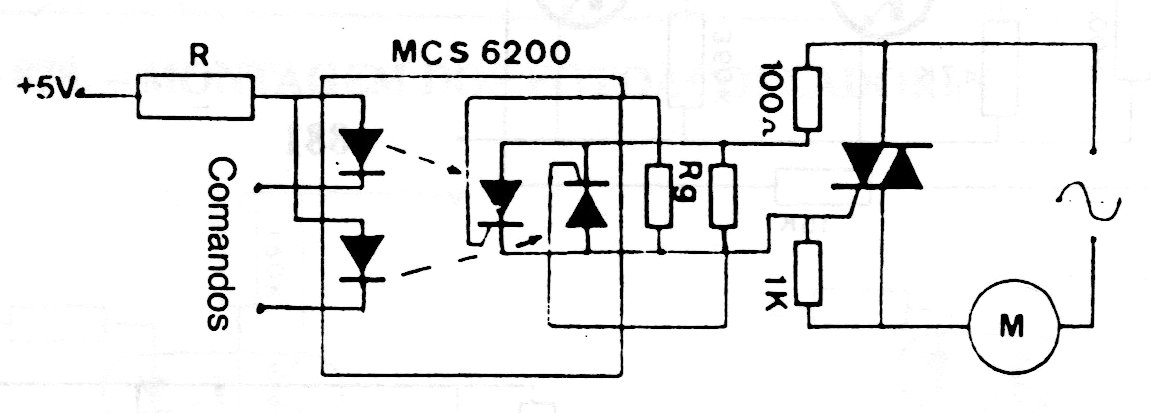

This shield uses a double optical coupler to control an alternating current motor. It is a version of the previous circuit with greater power with triac. With it it is possible to invert the phase of the current applied to the motor. The resistor R is typically 330 ohms for microcontrollers like the Arduino.
