This circuit is from an old documentation using OP27. This operational amplifier is not common today, but the configuration can be adapted to use modern amplifiers. The power supply must be symmetrical.
| Clique na imagem para ampliar |

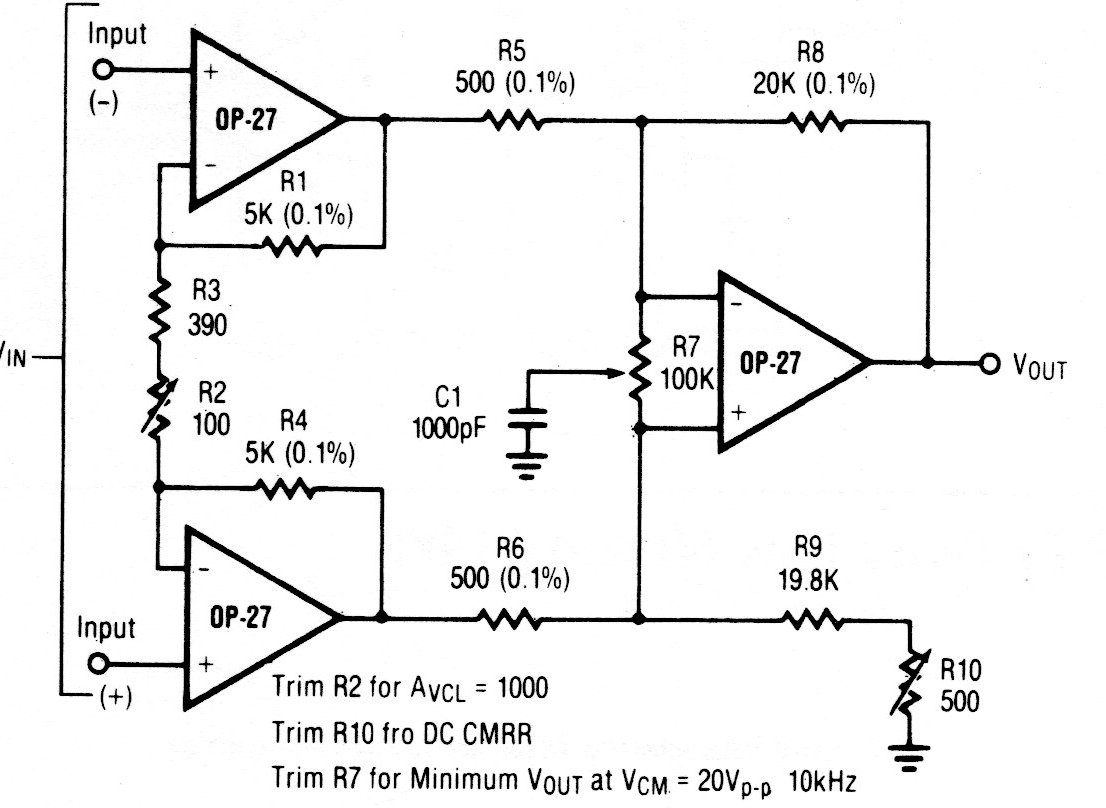

Instrumentation Amplifier OP27 (CB19723E)
- Details
- Written by: Newton C. Braga
