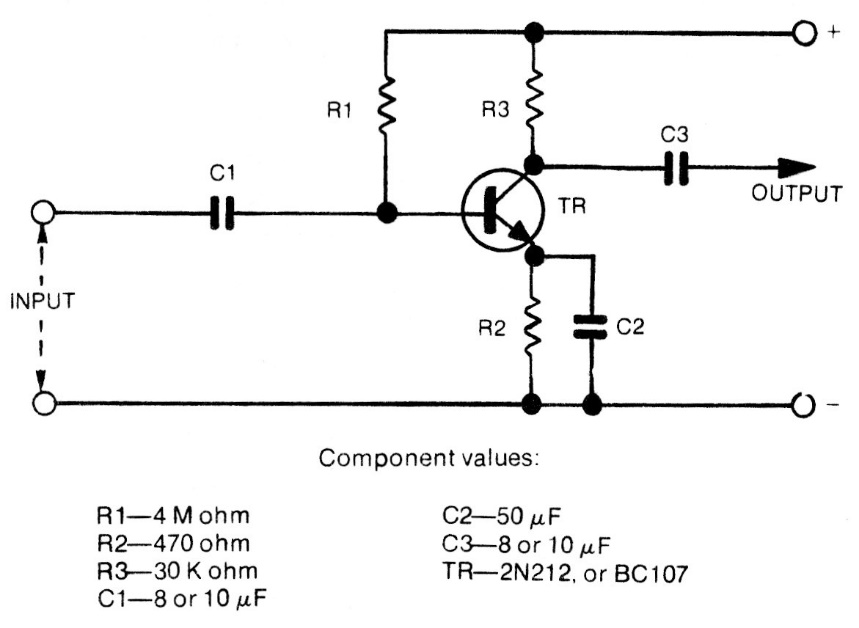

Unlike the previous one, this circuit uses only one resistor in the base polarization. The component values are attached to the diagram and the supply voltage can typically be between 3 and 9 V. The circuit is from an 80's documentation.
