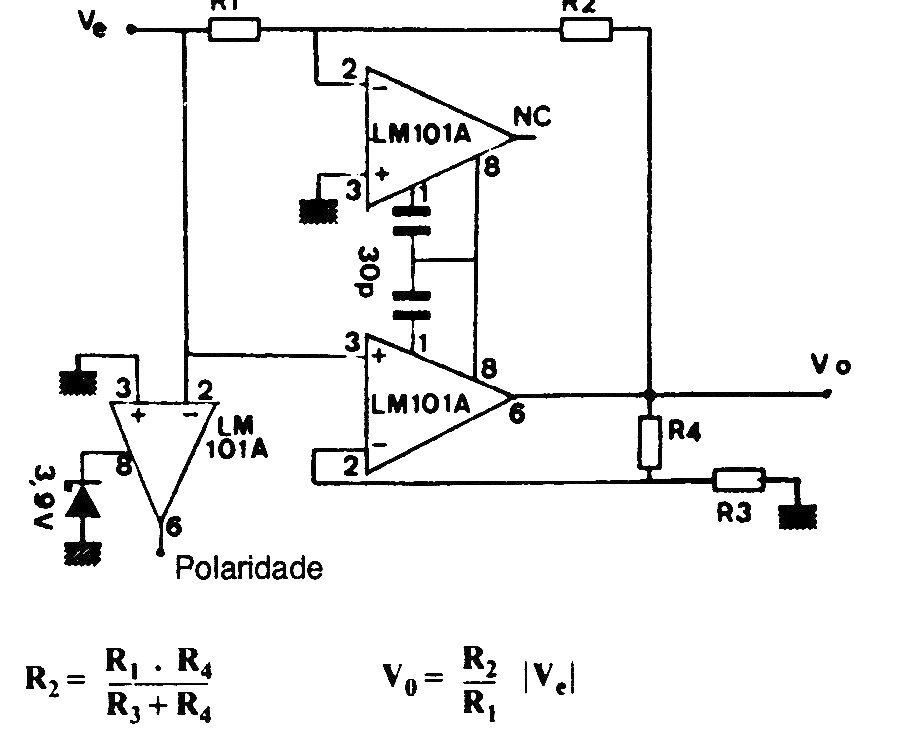

This circuit, in addition to providing an output that corresponds to the absolute value of the input voltage, it also detects its polarity. The circuit is from an old European documentation and the operational amplifiers admit equivalents.
| Clique na imagem para ampliar |
