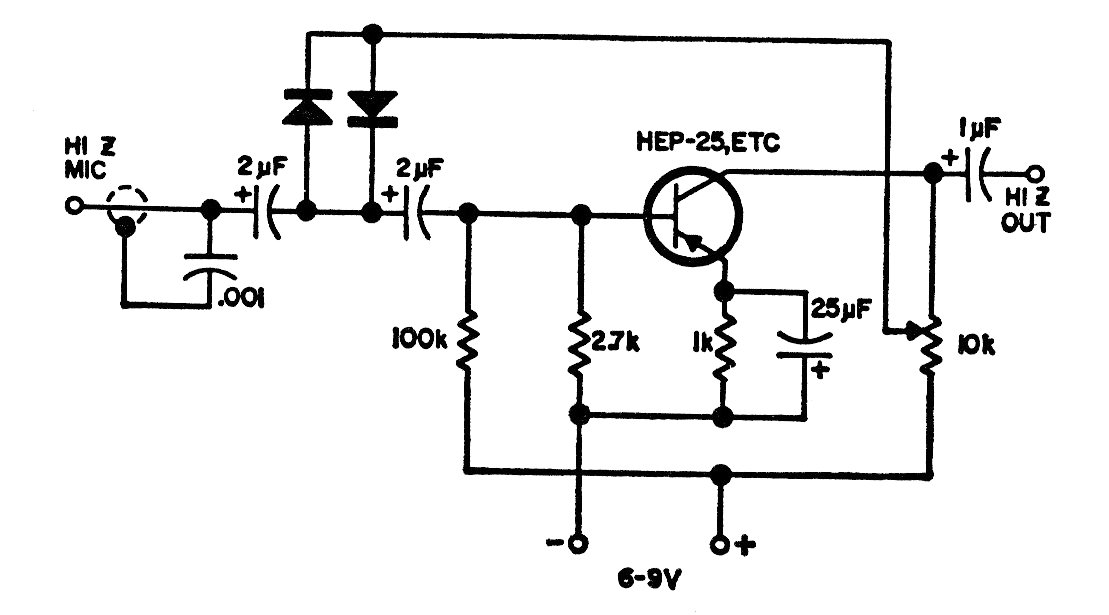

We found this simple preamp circuit with only one transistor in a documentation from the 70s. The transistor can be the BC558, and the diodes are for general use. The source must have good filtering.
| Clique na imagem para ampliar |
Transistorized Amplifier (CB19994E)
- Details
- Written by: Newton C. Braga
