Protection Circuit (CB19969E)

Details
Written by: Newton C. Braga

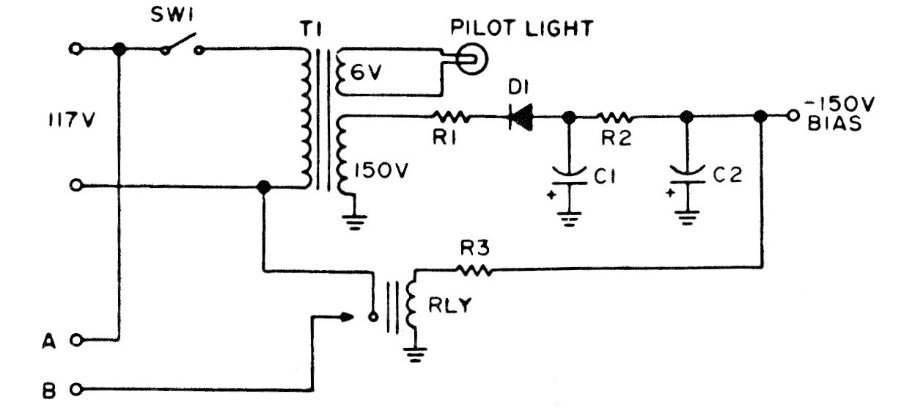

The purpose of this circuit is to cut off the high voltage when the bias voltage fails. The circuit is from a 1975 documentation and can be adapted for other purposes.




| Clique na imagem para ampliar |
