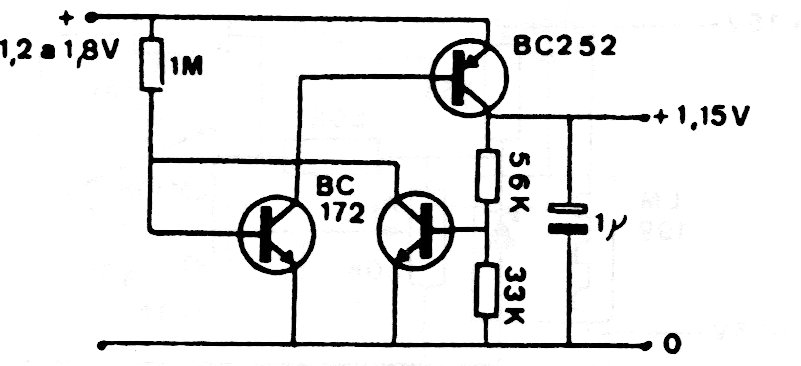

This circuit is interesting for applications that are powered by batteries and need constant voltage. From voltages of 1.2 to 1.8 V it provides a constant output of 1.15 V. The circuit was found in an old documentation, and modern equivalent transistors can be used.
| Clique na imagem para ampliar |
