Current Regulator LM117 (CB19832E)

Details
Written by: Newton C. Braga

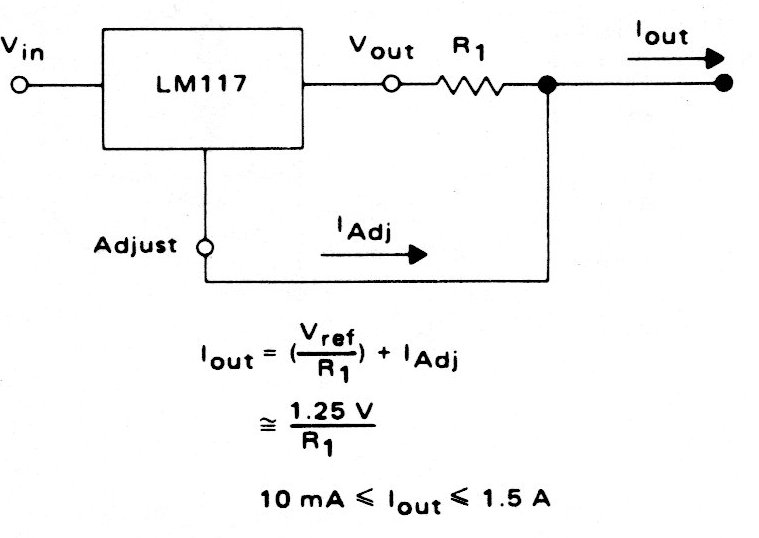

The circuit has the traditional configuration that can be found elsewhere on this site. This is from 80s documentation and the LM350 can be used for higher current.
