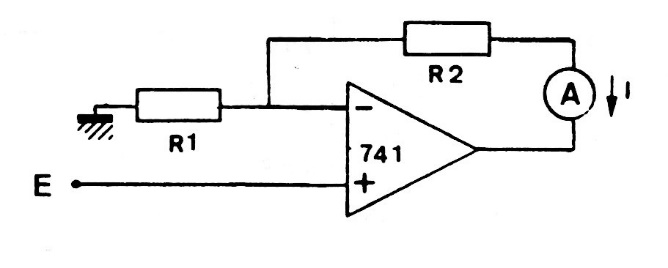

In the figure we have a typical configuration with operational, which can be different from the 741, for excitation of a galvanometer the relationship between R2 and R1 determines the gain and the full-scale current. The power supply must be symmetrical from 3 to 12 V or according to the operational.
