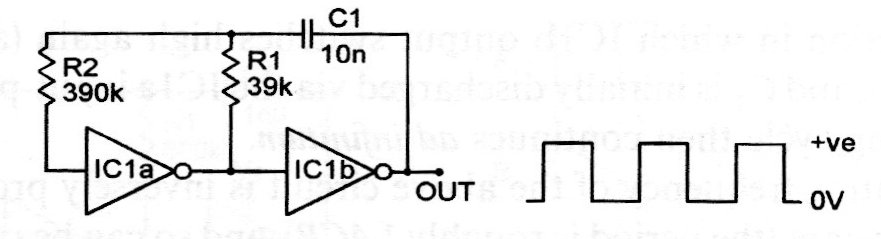

This oscillator can use inverters or connected AND or NAND gates as such. The signal produced with the indicated component values is kHz and its waveform is rectangular. The supply can be done with voltages of 3 to 12 V typically.
