Two Position Servo System (CB19799E)

Details: Written by: Newton C. Braga

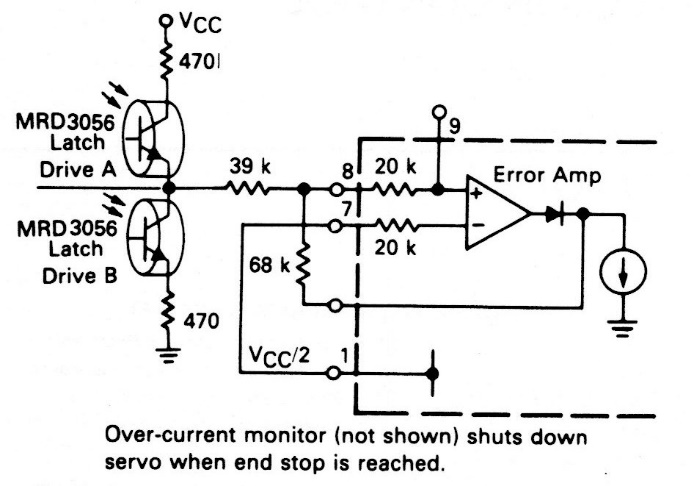

This lockable two-position servo control system was found in documentation from the 1990s. The error amplifier can be an operational amplifier and the sensors are phototransistors.
