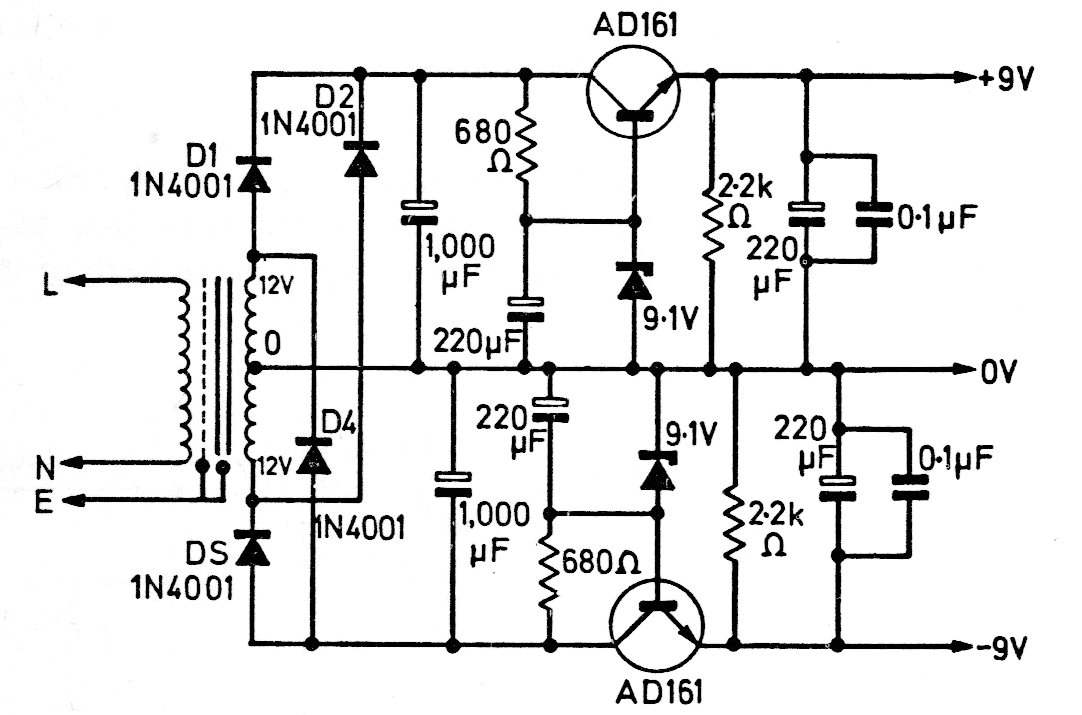

The transistors of this symmetrical source from an old publication can be replaced by modern equivalents such as BD135 and BD136. With this, the current can supply currents up to about 300 mA. Transistors must be mounted on heat sinks and the output voltage changed by changing the zener diodes.
| Clique na imagem para ampliar |
