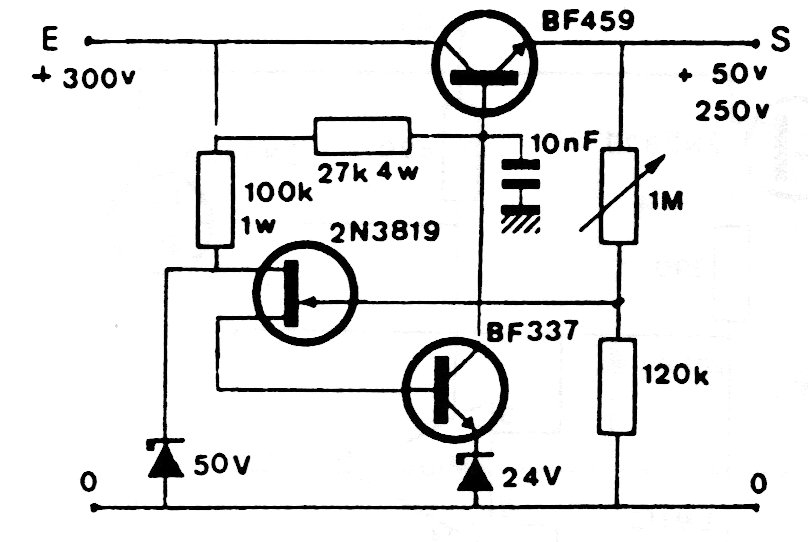

This circuit can supply output voltages from 50 to 250 V from an input voltage of 300 V. The transistors are of old types, difficult to obtain today, suitable for high voltage applications. The circuit is from an 80's documentation.
