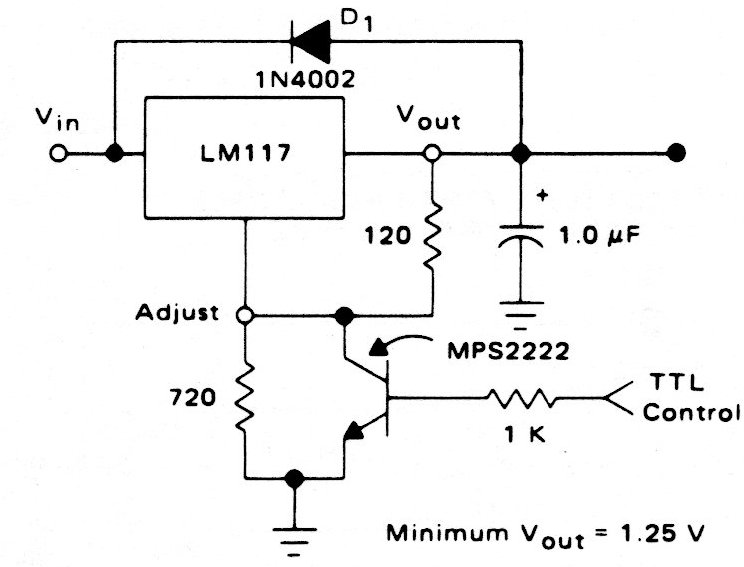

This 1.5 A circuit is from the LM117 manual. The LM350 can be used for higher current, and the output voltage depends on the adjustment voltage given by the 120 ohms and 720 ohms resistors. The circuit can be controlled by microcontrollers.
