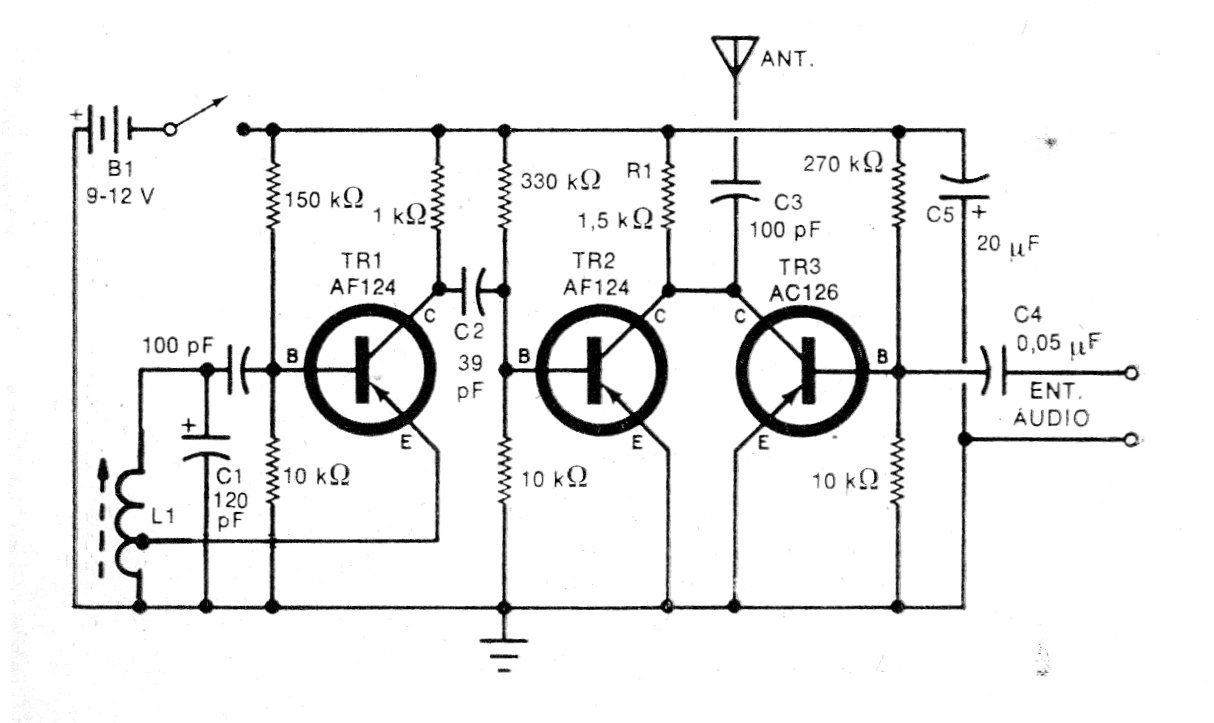

This experimental short-range transmitter came out in a 1972 publication and was designed to transmit signals from a record player to a radio. A microphone can be used as a signal source or even an MP3 in a modern version. The coil consists of 30 + 50 turns of wire 28 in a ferrite rod in a tube that allows its mobility for tuning.
