Motorola's MC1456 integrated circuit used in this application is not very common today. The configuration doubles the frequency of a signal and must be supplied with a symmetrical source of -6 and 12 V.
| Clique na imagem para ampliar |

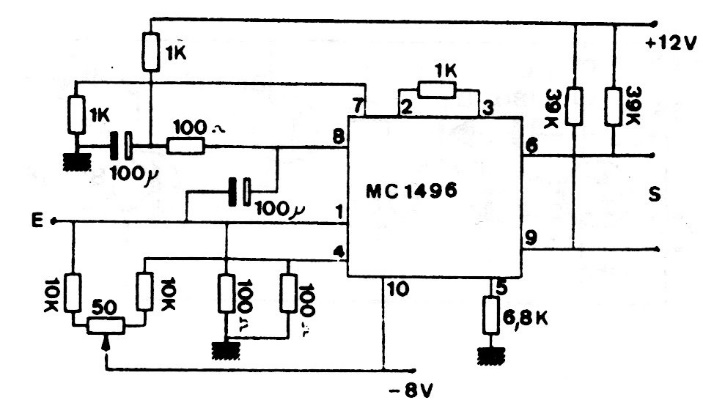

Frequency Doubler (CB19929E)
- Details
- Written by: Newton C. Braga
