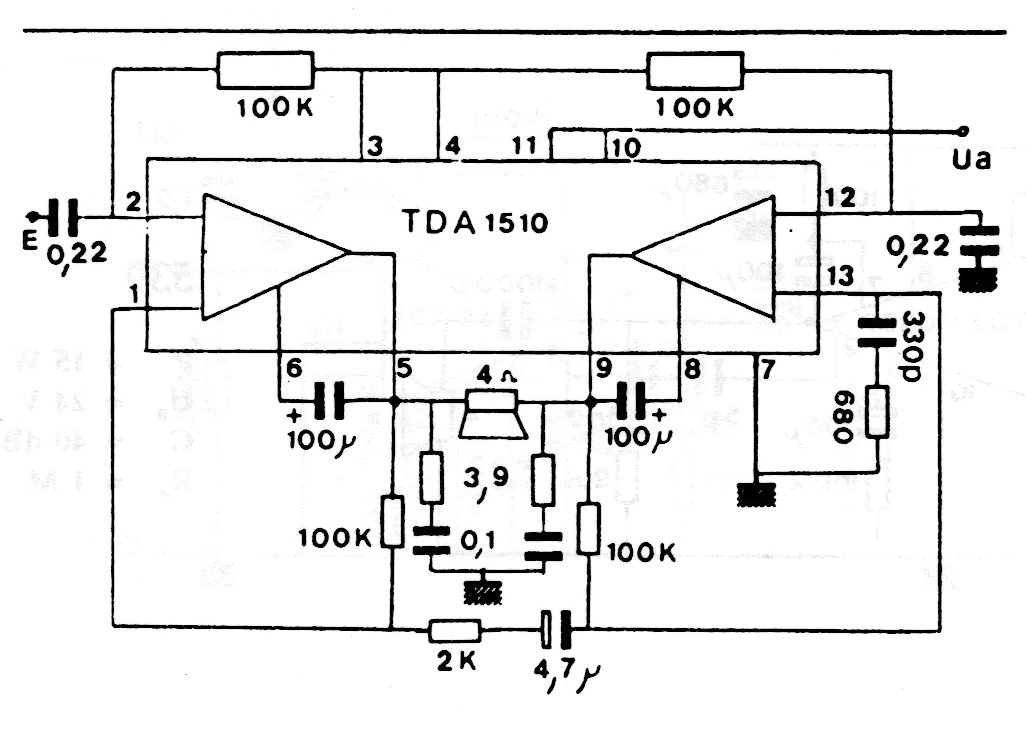

This Philips commercial circuit is from the 90's documentation. The integrated circuit must be equipped with a heat sink and its power supply is up to 18 V. The gain is 40dB and the input resistance is 150 k.
| Clique na imagem para ampliar |
24 W amplifier TDA1510 (CB19167E)
