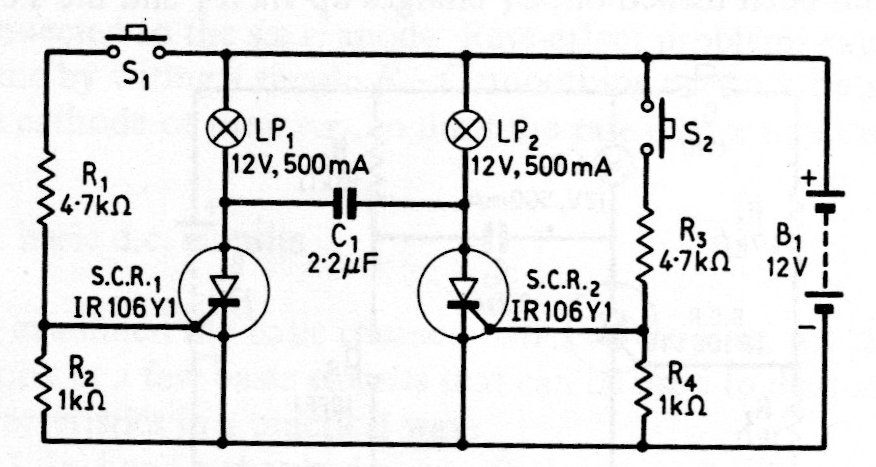

LEDs with appropriate resistors can be used in place of the lamps in this circuit obtained in a technical documentation on SCRs of 1977. SCRs can be equivalent to the 106 series and the supply can also have other voltages if LEDs are used.
