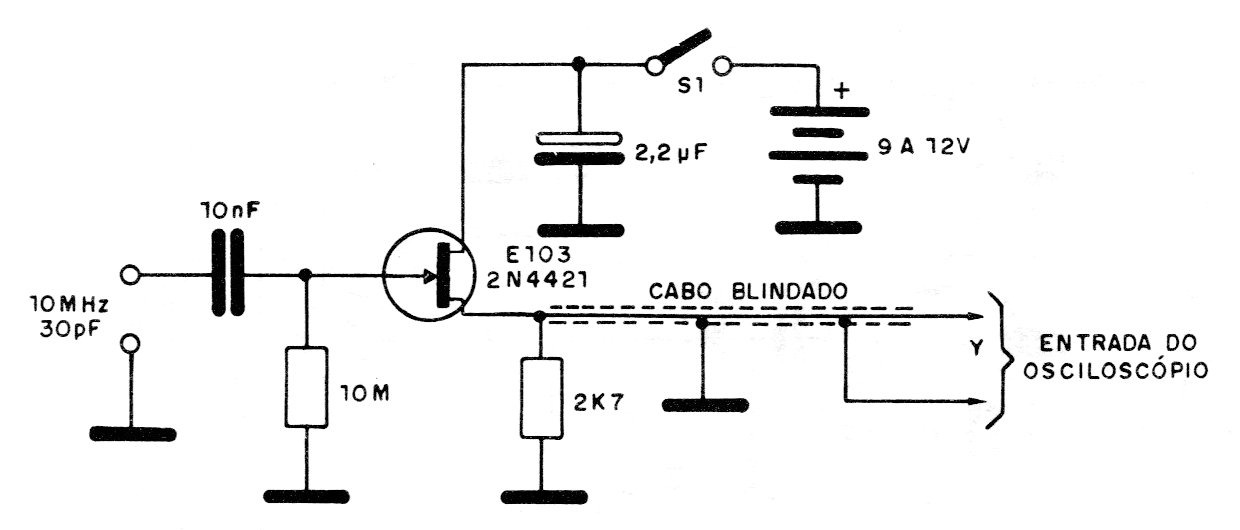

This circuit is intended to match impedances for observing signals on an oscilloscope. The FET supports equivalents and both signal input and output cables must be shielded. The input capacitance is 30pF and the supply can be made with voltages from 9 to 12 V.
