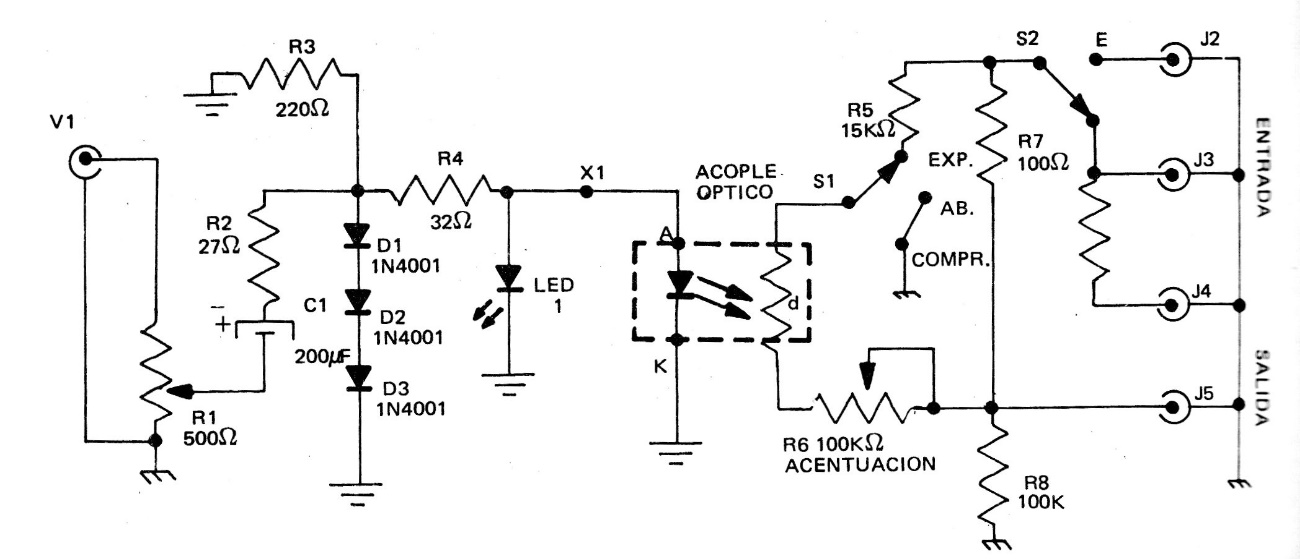

This fully passive circuit was found in documentation from the 1970s. The circuit uses an optical coupler and is voltage controlled. A modern idea is to use it as a digital control shield for sound systems. The circuit is placed between the preamplifier and the audio amplifier.
| Clique na imagem para ampliar |
