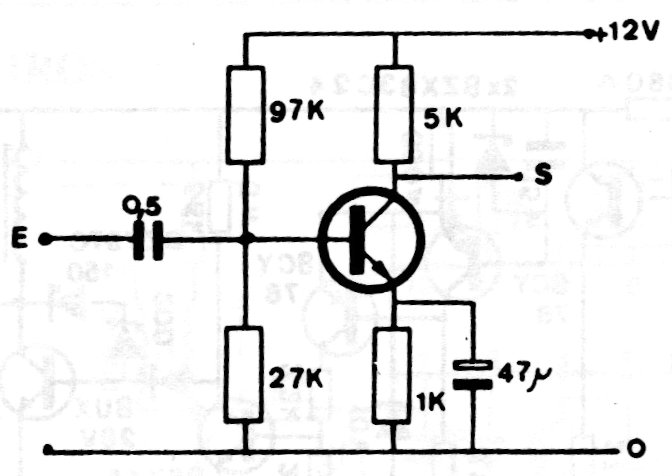

General purpose transistor stage (CB19876E)

This amplifier step for small signals can use any general-purpose transistor like the BC548. The circuit can be powered by voltages from 6 to 12 V.

| Clique na imagem para ampliar |

Ultrasonic Oscillator (NI008E)
The 50 kHz signal generated by this circuit is applied to a low impedance inductive transducer. A...
AC Amplifier with 5 V Supply MC33171 (CB15269E)
This circuit can also use other series operational amplifiers such as MC33172, MC33174, MC35171,...
Analog Divider Multiplier (CB21035E)
This circuit was found in an Analog Devices publication from the 1990s. The circuit performs input...
