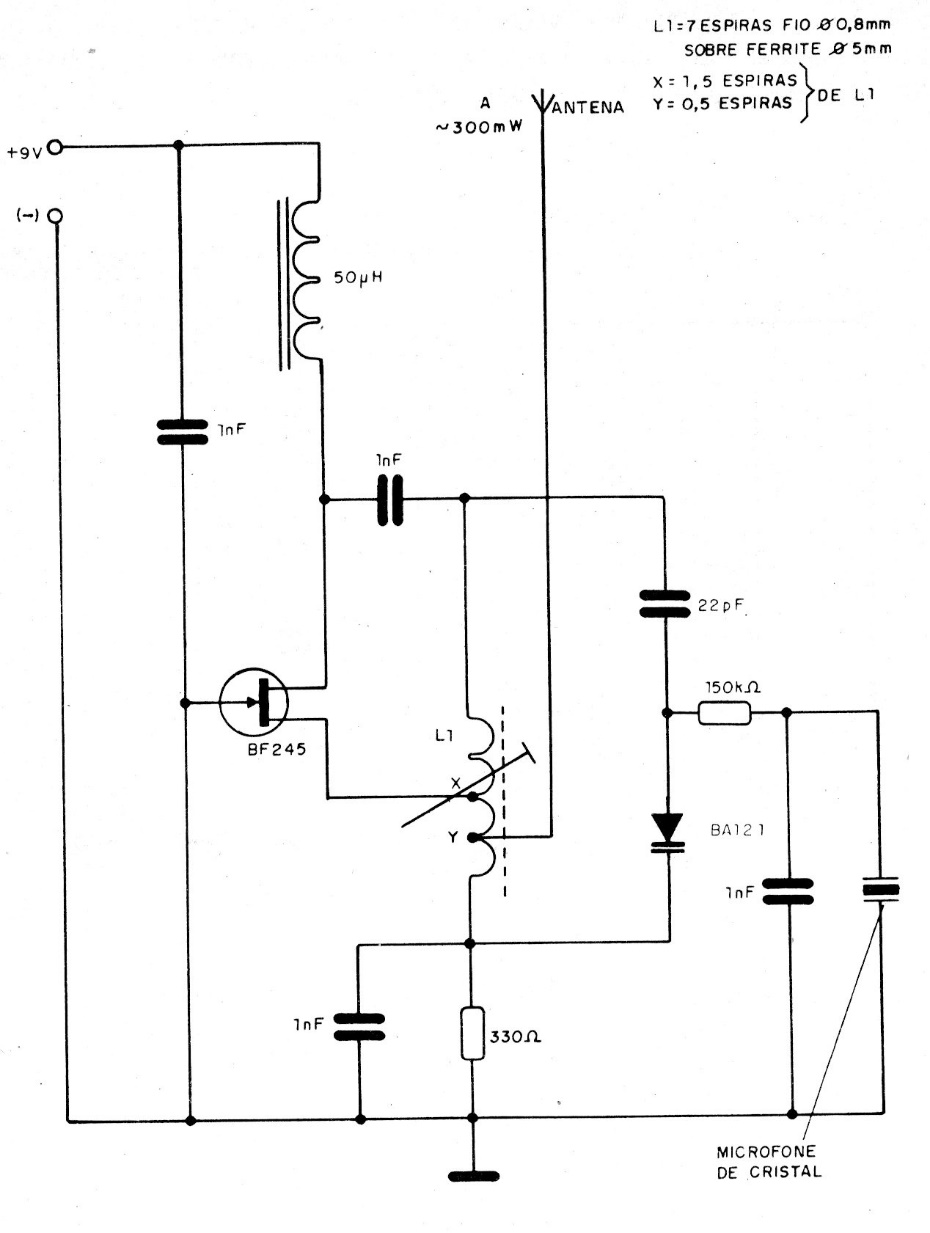

This small FM transmitter for clandestine listening has a good range and should be powered by a 9 V battery. The circuit is from an old publication on espionage and the modulation made by varicap. Information about the coil is given next to the diagram.
