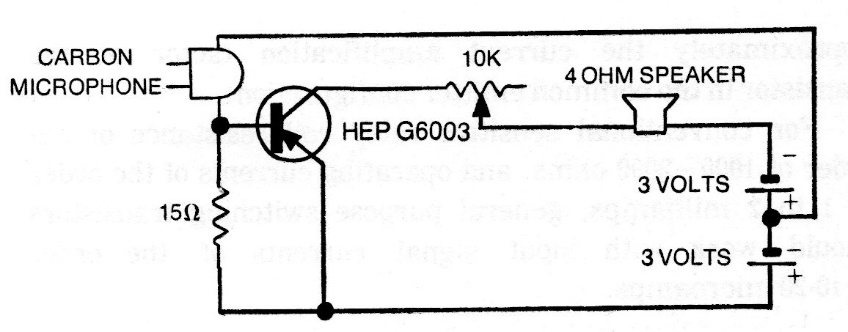

Charcoal microphones are rare today. In the figure we have a circuit that shows the use of one of these microphones with a power transistor to obtain a megaphone. In fact, for greater power the potentiometer must be 1 k ohm or less.
