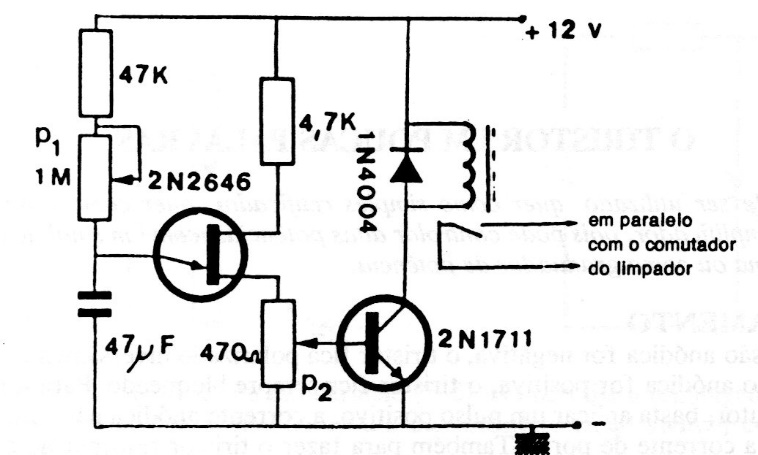

This circuit is from an old publication, from the 80s, since in modern cars this type of circuit is now part of the electronics of all cars. The circuit uses a unijunction transistor as a base and the time is adjusted in a potentiometer.
| Clique na imagem para ampliar |
