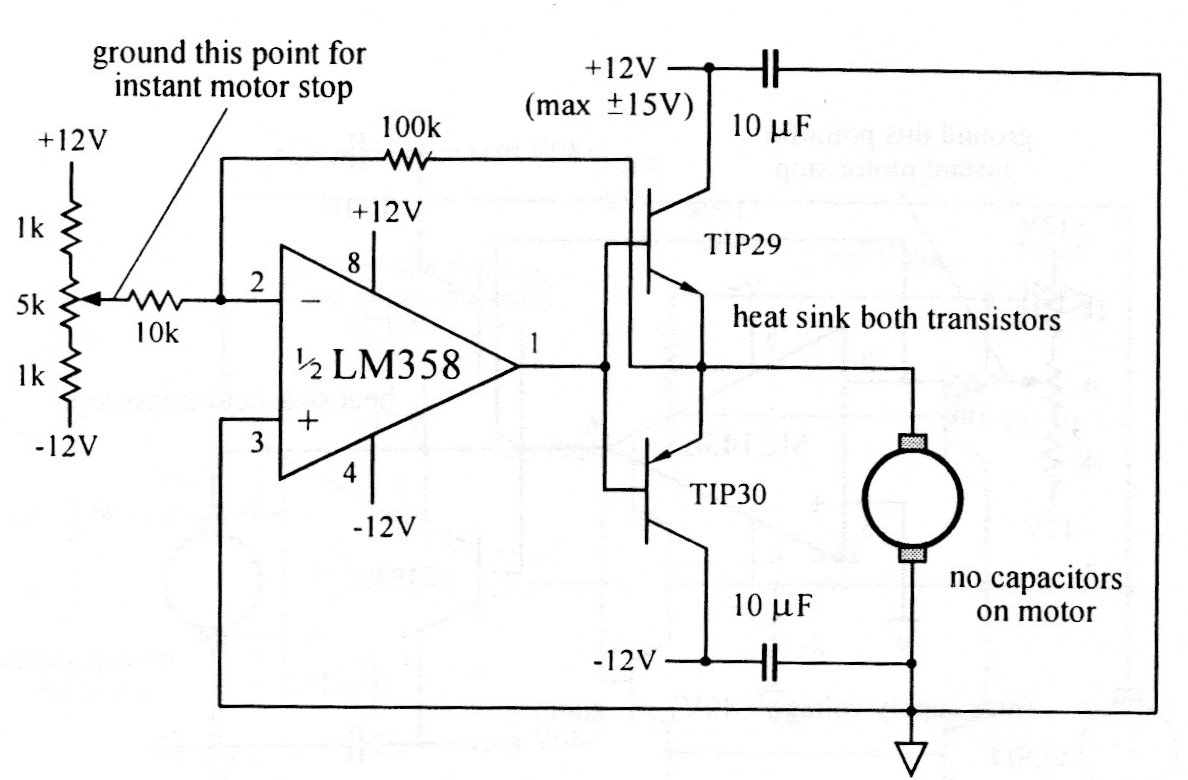

Motors up to 2 A can be controlled by this circuit, which requires a symmetrical source. Although indicated for 12 V it will work with voltages from 5 V which allows its use with microcontrollers. Output transistors must be mounted on heatsinks. The circuit is from an American book from the 90s.
