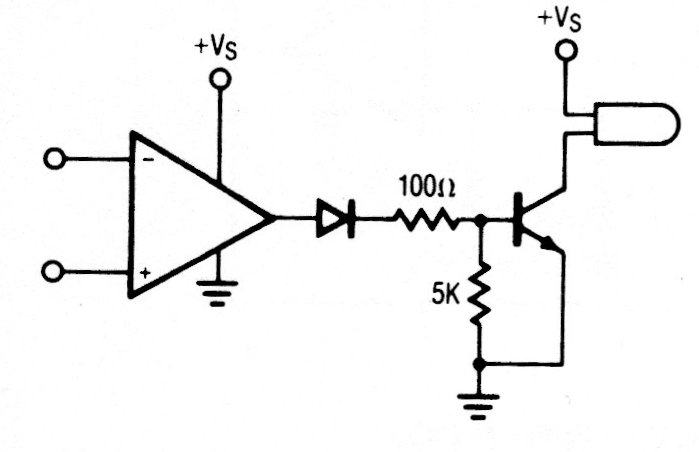

Originally this circuit excites an incandescent lamp, but it also serves for LEDs, if they use a resistor of appropriate value in series. The transistor can be the BC548 for currents up to 100 mA. The diode is general purpose. Any operational can be used.
