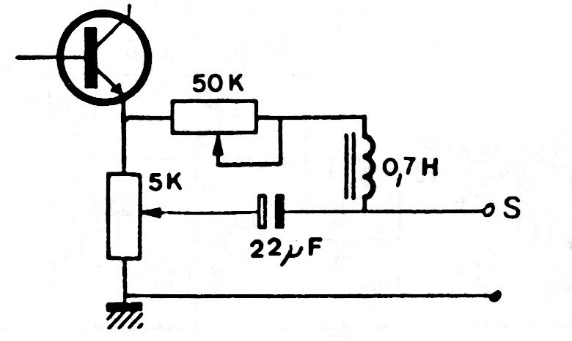

This partial circuit that must be added to a preamplifier output transistor as in CB19186E simultaneously controls the volume and bass of an active control circuit. The circuit is from a 90's schematic.
Volume and Bass Control (CB19187E)
