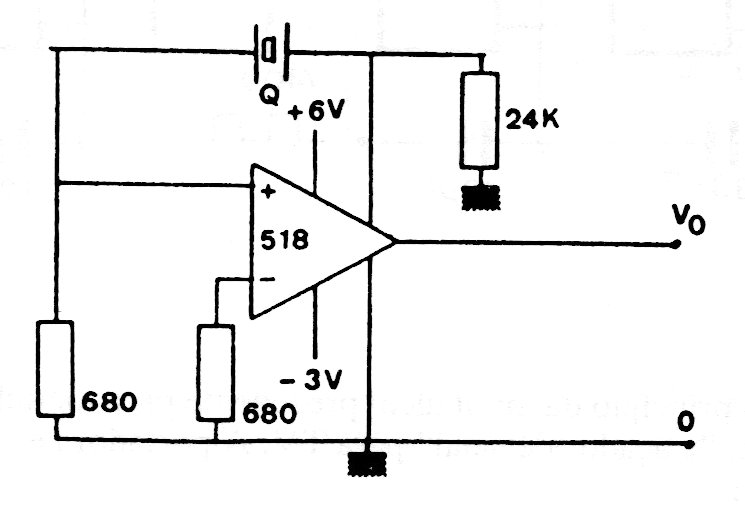

In the figure we have the way to implement an oscillator from 100 kHz to 5 MHz with operational, being controlled by quartz crystal. Other operationals can be used as long as they support the desired frequency in the operation.
