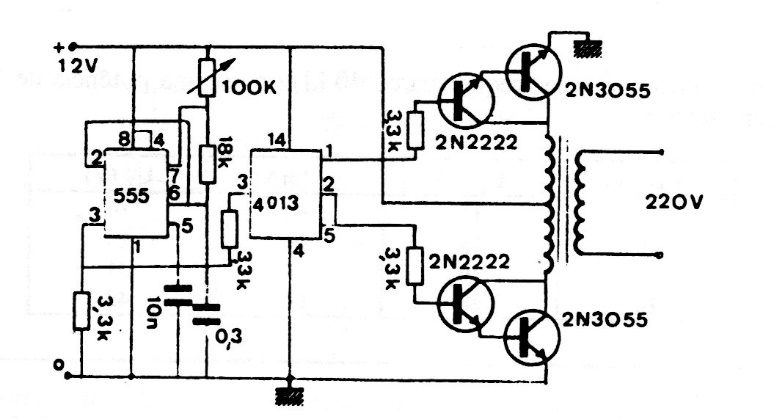

This inverter was found in an old European documentation, but components are still current. Only the transformer that should be tested, as its characteristics will determine the performance of the circuit. The transformer’s secondary can be 12 + 12 V x 3 A.
