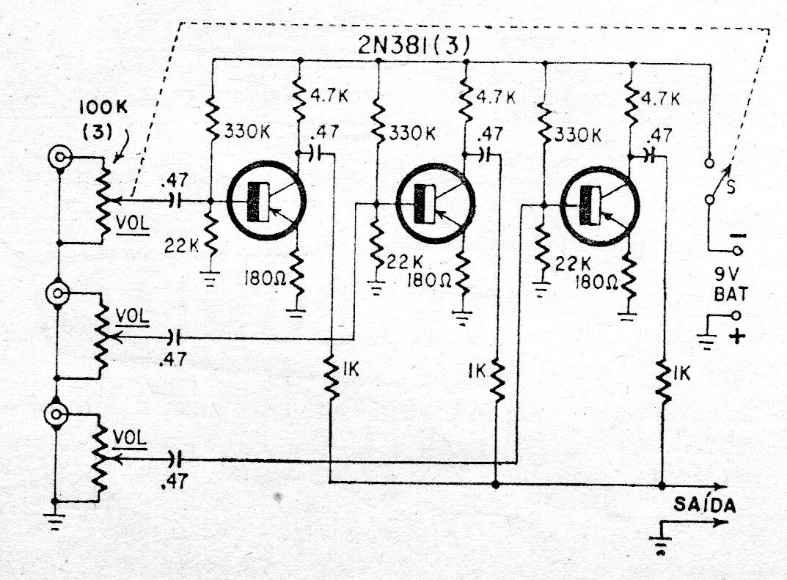

This transistor mixer was found in a 1967 publication, using transistors from that time. However, the circuit can be implemented with modern transistors. The power supply must have excellent filtration and the signal cables must be shielded.
| Clique na imagem para ampliar |
