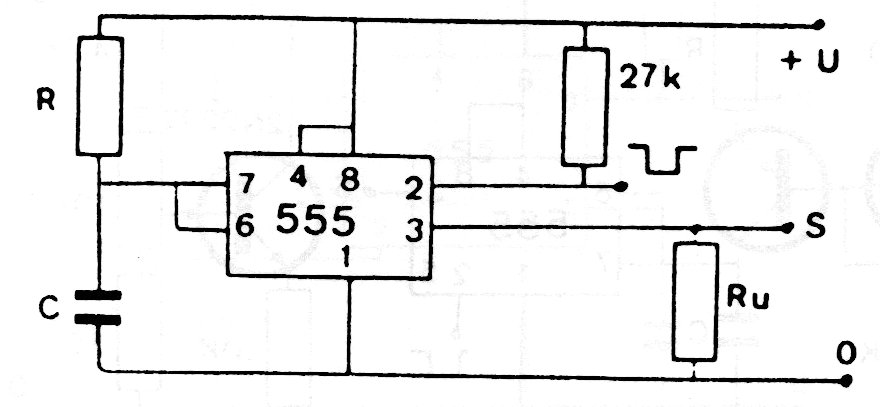

This is the traditional 555 monostable configuration found at many points in this section and on this website. The time is given by R and C which can be calculated using the formulas in our math section and the 555's own operation.
