Unijunction Alarm Siren (CB19990E)

Details
Written by: Newton C. Braga

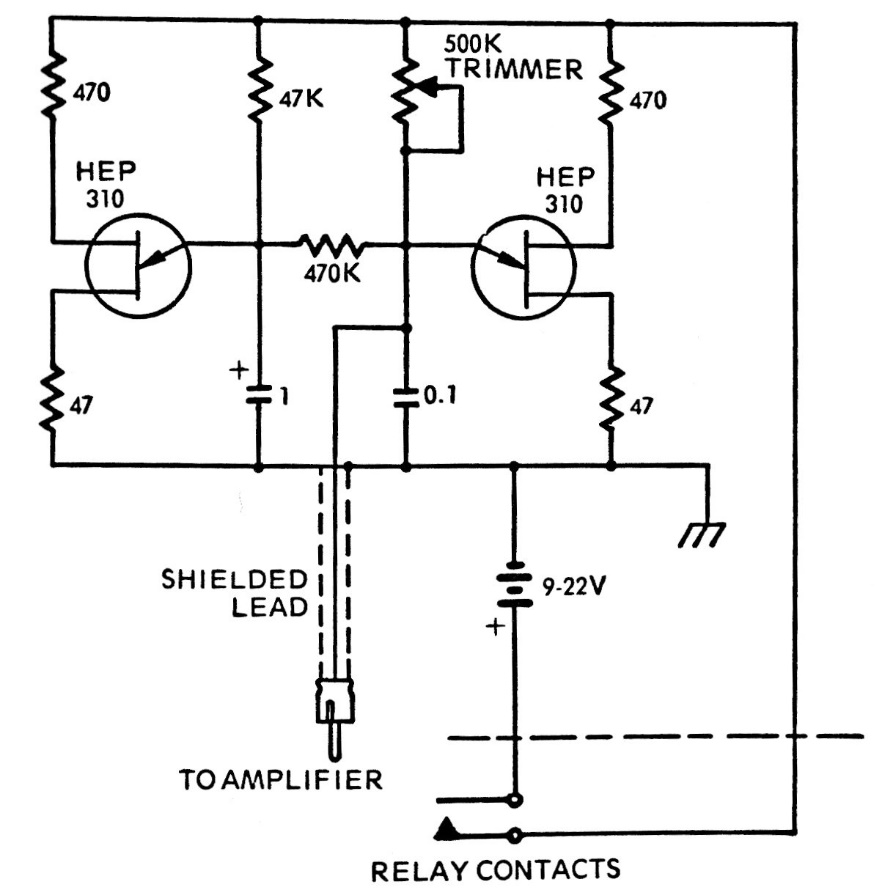

This circuit is from an American documentation from 1975. The single junction transistors can be 2N2646 and the signal must be applied to the input of a good amplifier.
