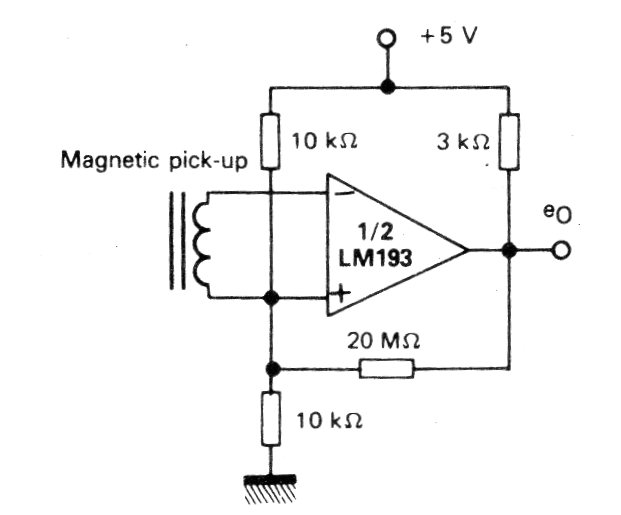

This circuit was found in documentation from the 1980s. The circuit can be implemented with other operational amplifiers and the power supply must be symmetrical. Powered with 5 V the circuit acts as an input shield for microcontrollers.
Magnetic Transducer Amplifier (CB19013E)
- Details
- Written by: Newton C. Braga
