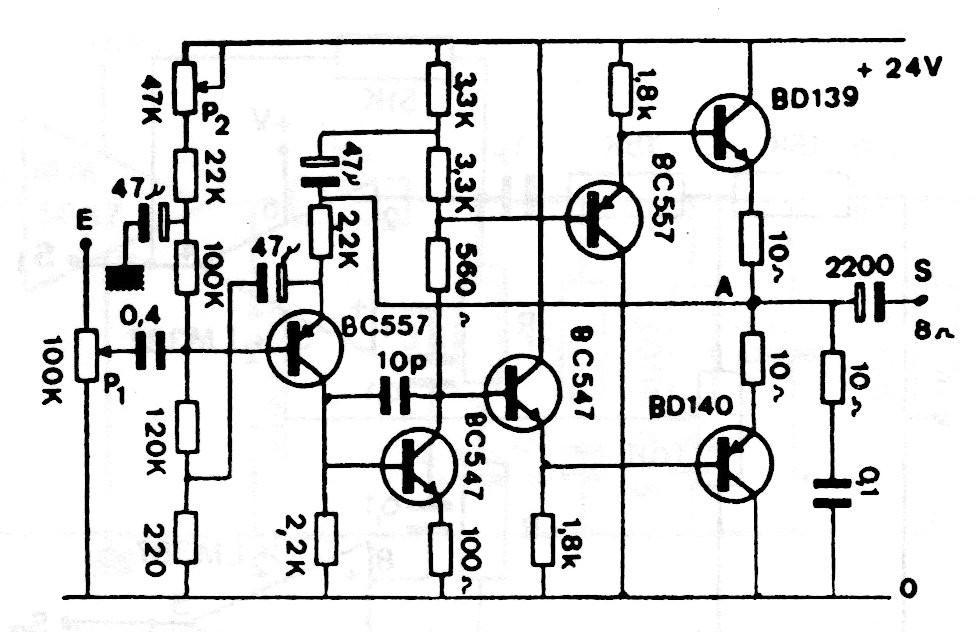

This is a traditional configuration with complementary types of transistors that are still common in the market. The output transistors must be equipped with small heat sinks and the 24 V supply must be supplied by a source of at least 300 mA.
| Clique na imagem para ampliar |
