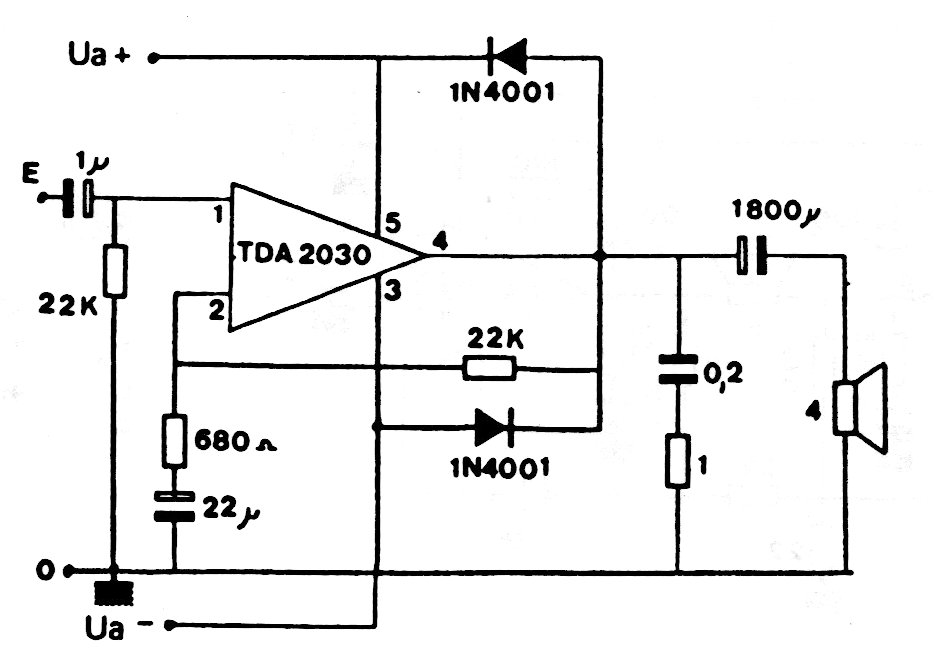

This old Philips amplifier uses an integrated circuit that is not common today. The circuit must be powered with 18 V and has a gain of 30dB. The input resistance is 22k. Note that the font is symmetric.
| Clique na imagem para ampliar |
18 W amplifier TDA2030 (CB19165E)
