6 V x 150 mA power supply (CB19245E)

Details
Written by: Newton C. Braga

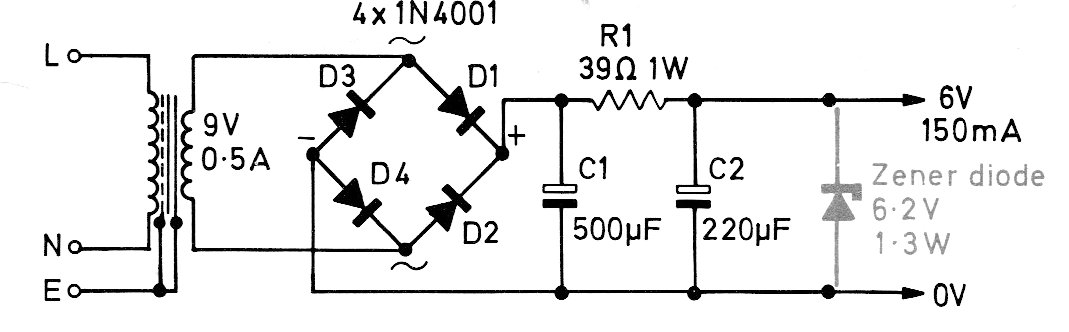

This simple 6 V source stabilized by zener diode was found in a European technical publication from 1972, but it is current for its simplicity and the components it uses.




| Clique na imagem para ampliar |
