Schmitt Trigger IV (CB19548E)

Details
Written by: Newton C. Braga

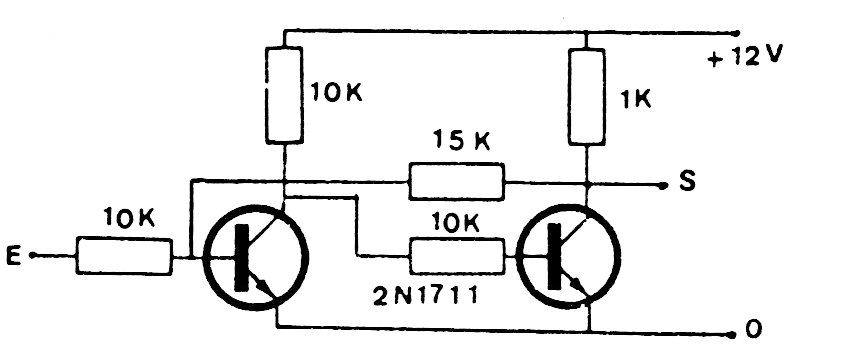

This trigger uses two switching transistors that can still be found with some ease. The circuit is from an old documentation and its purpose is to speed up the switching of logic circuits.




| Clique na imagem para ampliar |
