Small Motor Control (CB19564E)

Details
Written by: Newton C. Braga

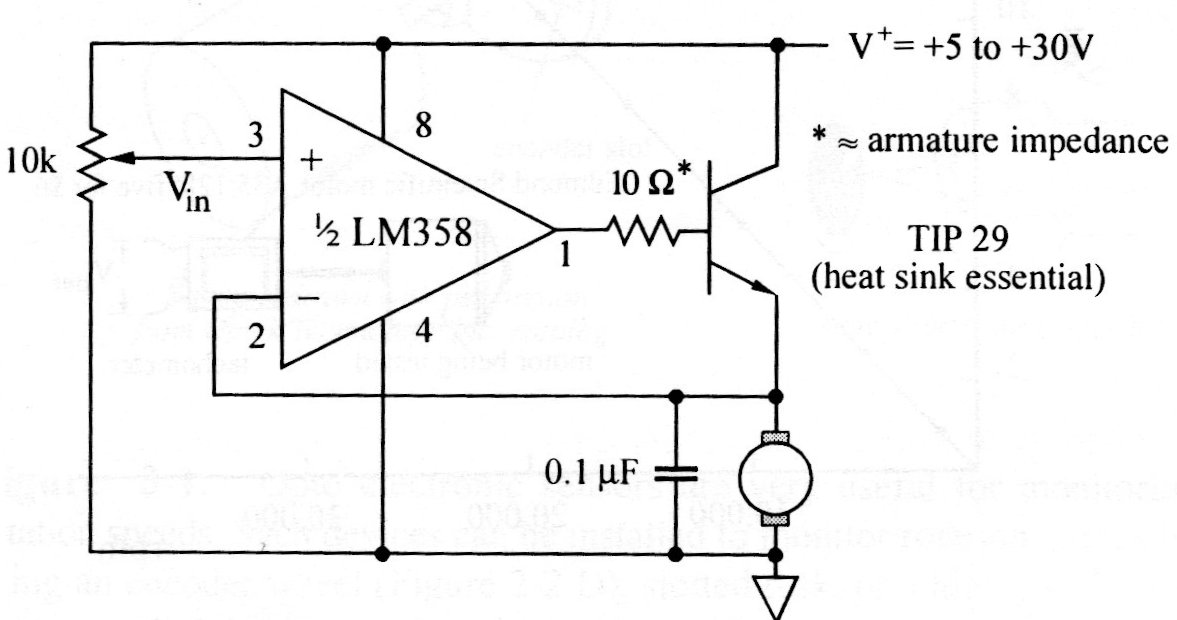

This small control for DC motors up to approximately 1 A uses an operational amplifier that admits equivalent. The transistor can be TIP29 for currents up to 1 A or BD135 for 500 mA.
