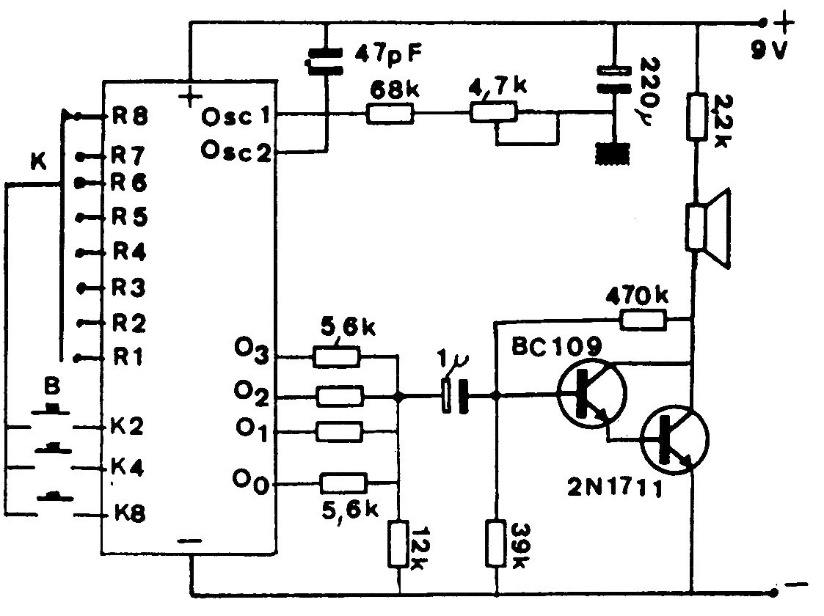

Texas Instruments' TMS1000 integrated circuit was very successful in the 1980s, consisting of a melody generator that already contained 8 programmed melodies that were selected using a selector switch or jumpers. The amplifier stage support equivalents transistors.
