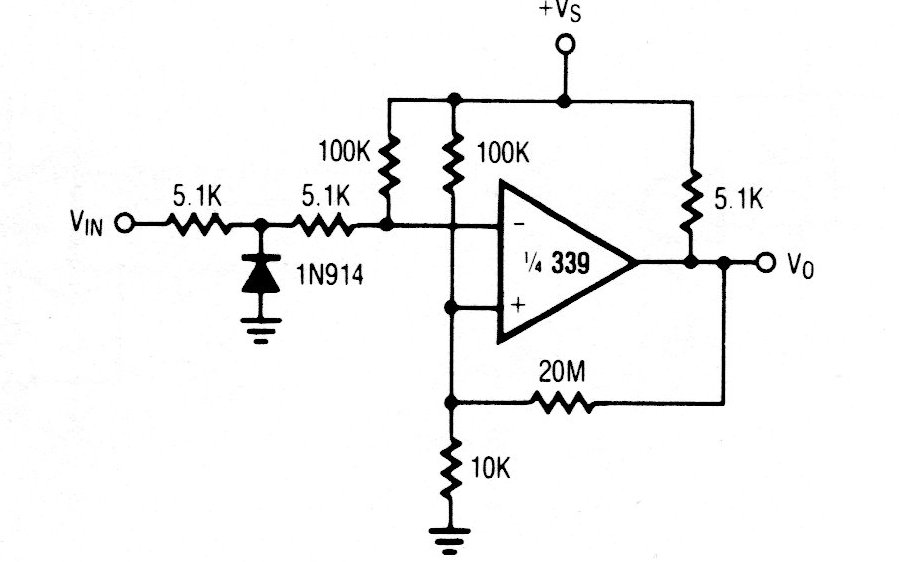

Zero Crossing Detector LM339 (CB19795E)

Details
Written by: Newton C. Braga



This circuit can be implemented with other comparators in the same series. The circuit is from a component manual and the supply voltage between 3 and 12 V depends on the application.
