Triac Flasher (CB19143E)

Details
Written by: Newton C. Braga

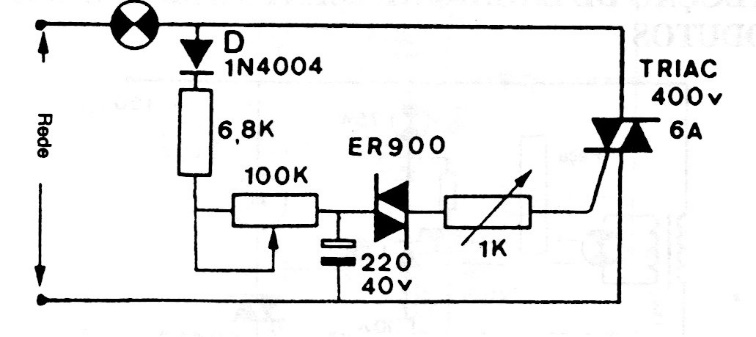

This circuit only works with incandescent lamps and the frequency is adjusted in the pot, depending also on the capacitor. The triac must be equipped with a heat sink. The circuit is from an 80s manual.
