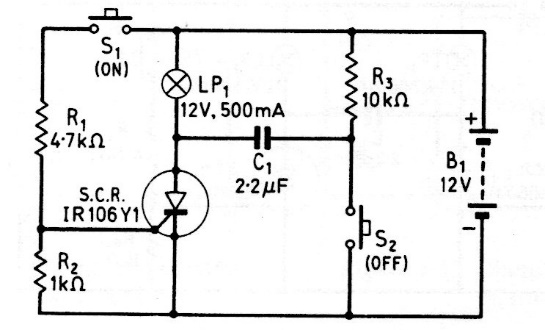

In the figure we have the way to reset (turn off) an SCR using a push button switch on a capacitive circuit. Just a momentary touch of switch 2 will turn off the SCR triggered by S1. The circuit can be adapted to operate as a shield, by sending a negative reset pulse through C1.
