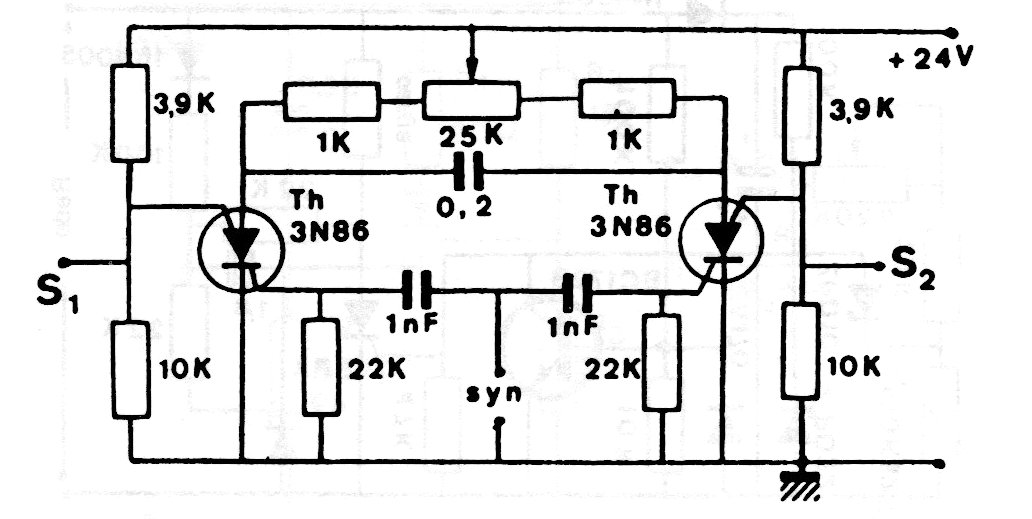

This circuit can either generate signals in the astable form or be synchronized externally, controlling external power loads. The circuit is from old documentation and SCRs can be modern equivalents.
| Clique na imagem para ampliar |
SCR Signaling Oscillator (CB19337E)
