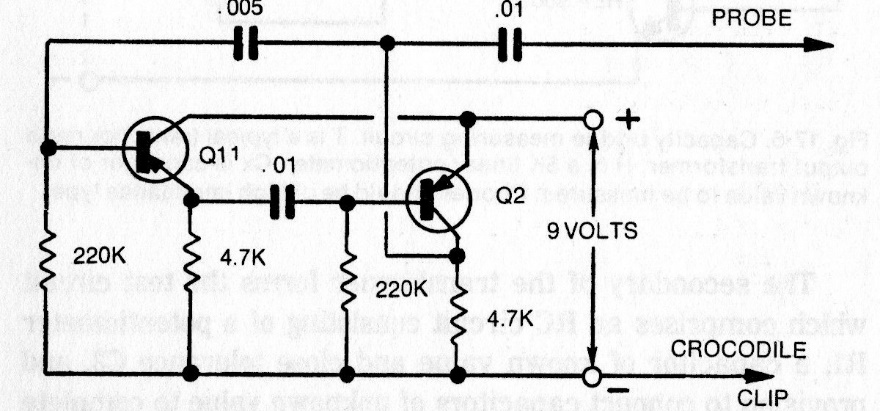

This simple multivibrator circuit generates a 1 kHz signal rich in harmonics. The circuit is from an old American documentation and the transistors can be modern equivalents of general use like the BC558. The power, in fact, can be made with voltages from 3 to 9 V.
| Clique na imagem para ampliar |
