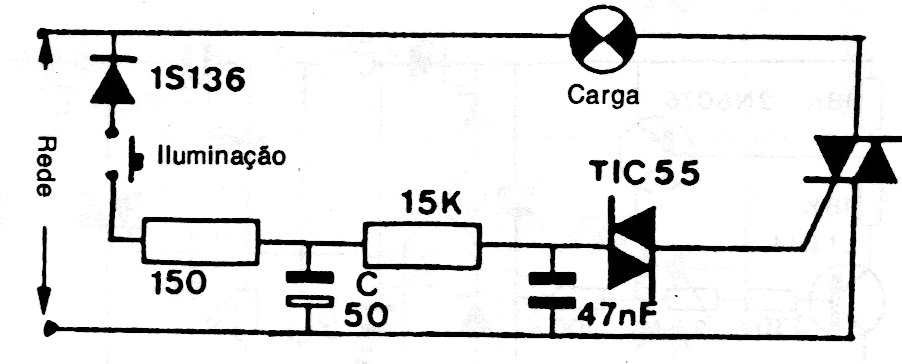

This application is from a circuit manual from the 90s and only works with incandescent lamps. The triac must be equipped with a heat sink and the timing depends on C. The circuit is for short periods of time.
| Clique na imagem para ampliar |
Triac Simple Timer (CB19142E)
- Details
- Written by: Newton C. Braga
