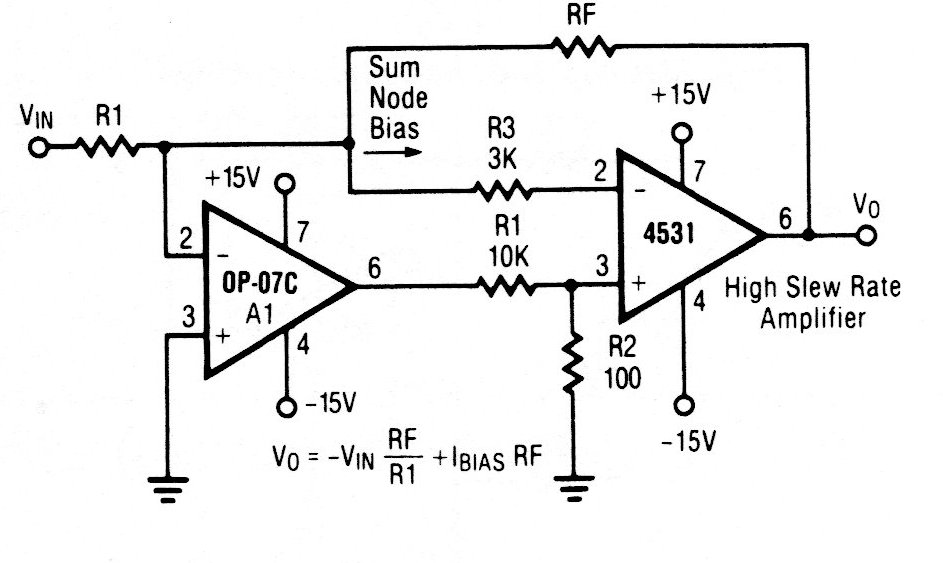

The operational amplifier taken as an example is uncommon today, but the configuration can be made with more modern types. The formula next to the diagram provides the characteristics of the circuit depending on the components.
| Clique na imagem para ampliar |
