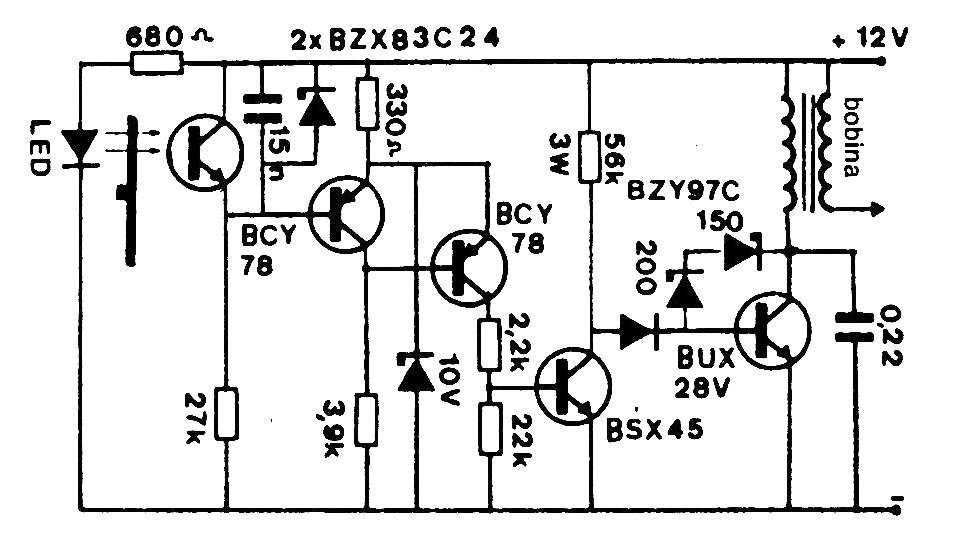

This circuit was found in documentation from the 1980s. The control pulses are obtained by an optical system with an emitting LED and a phototransistor. The components used admit modern equivalents.
| Clique na imagem para ampliar |
Optoelectronic Assisted Ignition (CB19873E)
