This non-E or NAND port can be easily implemented using an operational amplifier. Equivalent operational amplifier that operates at lower voltages can be used and the diodes are general-purpose types.
| Clique na imagem para ampliar |

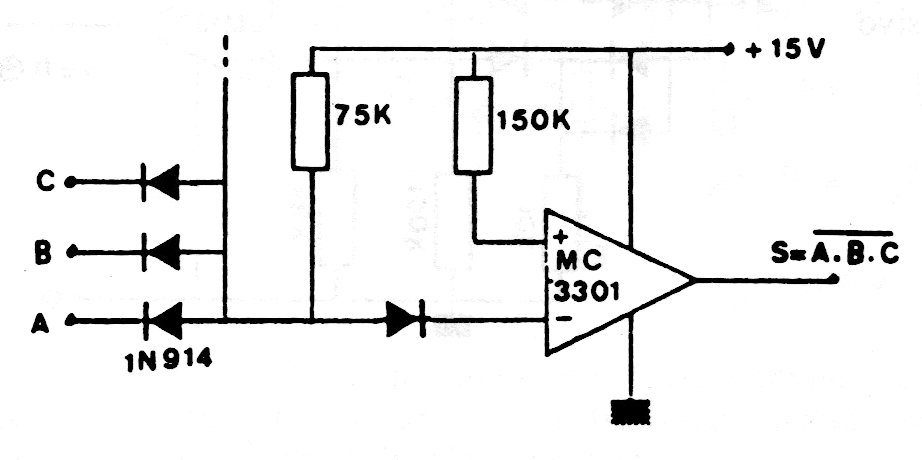

NAND gate with operational (CB19397E)
