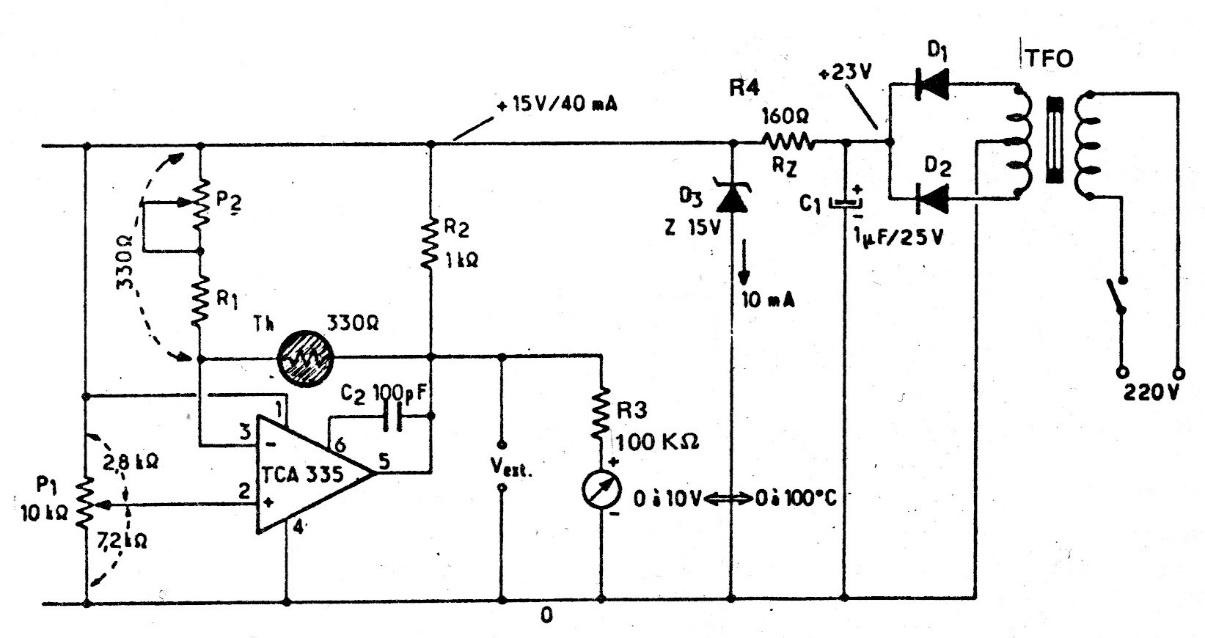

The sensor of this circuit is a thermistor of the same value as the adjustment circuit formed by P1 and R1. The integrated circuit used is uncommon today, but equivalent operational can be tested.
| Clique na imagem para ampliar |
Electronic Thermometer (CB19604E)
- Details
- Written by: Newton C. Braga
