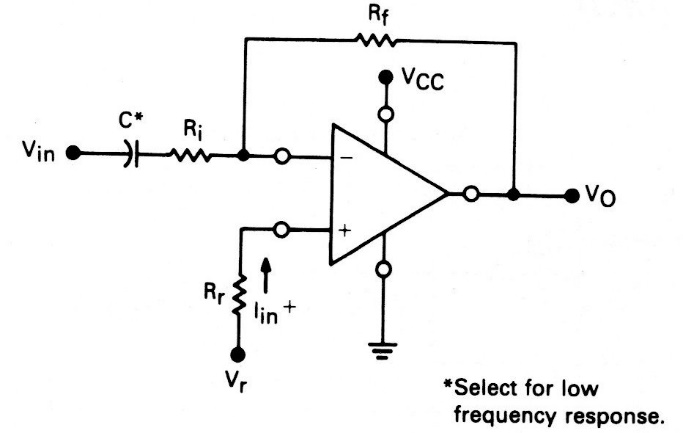

This circuit was obtained in a Motorola manual, but it applies to almost any operational amplifier. The circuit is for simple sources and the capacitor is selected according to the desired low frequency response.
| Clique na imagem para ampliar |
Inverter Amplifier with Arbitrary Reference (CB19844E)
- Details
- Written by: Newton C. Braga
